DIN Rail Type power supplies

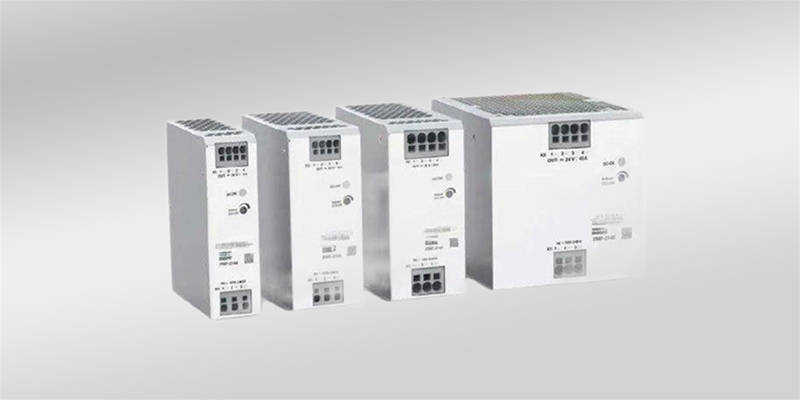

120-240W DIN Rail PSU
120W(12V/24V/48V) 240W(12V/24V/48V)
Wechat consulting
Details
| Power Rate | 120W | 240W | ||||||||||||||||||
| Protuct Type | DIN Rail Type | |||||||||||||||||||
| Model | DIN120-12 | DIN120-24 | DIN120-48 | DIN240-12 | DIN240-24 | DIN240-48 | ||||||||||||||
| Input Voltage（Vac） | 90-264 | 90-264 | ||||||||||||||||||
| Output Voltage（V) | 12 | 24 | 48 | 12 | 24 | 48 | ||||||||||||||
| Output Current(A) | 0~10A | 0~5A | 0~2.5A | 0~16A | 0~10A | 0~5A | ||||||||||||||
| Ripple and Noise(mVp-p) | 100 | 100 | 150 | 100 | 100 | 150 | ||||||||||||||
| Voltage ADJ. Range(V) | 12~14 | 24~28 | 48~55 | 12~14 | 24~28 | 48~53 | ||||||||||||||
| Peak Current(A) | 15 | 7.5 | 3.75 | 24 | 15 | 7.5 | ||||||||||||||
| Efficiency (@25℃220Vac Full load) | 90.5% | 92.5% | 92.5% | 90.5% | 92.5% | 92.5% | ||||||||||||||
| Voltage Accuracy | ≤±2% | ≤±1% | ≤±1% | ≤±2% | ≤±1% | ≤±1% | ||||||||||||||
| Standby power consumption(W) | ≤5W | |||||||||||||||||||
| Protection | Over Voltage | √ | √ | |||||||||||||||||
| Over Current | √ | √ | ||||||||||||||||||
| Over temperature | √ | √ | ||||||||||||||||||
| Short Circuit | √ | √ | ||||||||||||||||||
| Environment Requirements(℃） | -40~70（De-rated ＞45） | -40~70（De-rated ＞45） | ||||||||||||||||||
