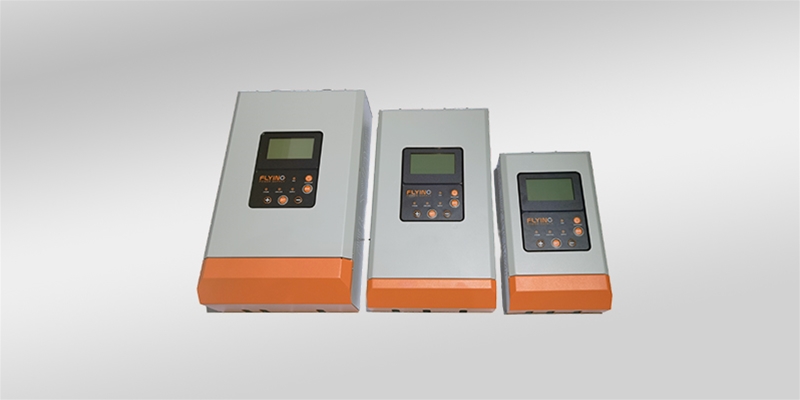

500~3000W AC-DC Industrial charger
1000W 2000W 3000W Series with MCU Charging Module, suitable for AGM, Lead Acid, Lithume, Normal battery.
Wechat consulting
Details
| Input voltage range | 110V/220V(90~264V), 47~63Hz | ||
| Max. output power | 1000W | 2000W | 3000W |
| Rated Battery (Output) voltage range: | 2.5~84V | 24~84V | |
| Battery system voltage | 12V(under 2KW), 24V, 36V, 48V, 60V, 72V, 84V | ||
| Battery Type | AGM, Lead Acid, Lithume, Normal. | ||
| Max. Conversion Efficiency: | Max. 93% (Rated output) | ||
| Power factor(PFC): | ≥0.98(with 100% load) | ||
| Rated output current | 12V system (80A) 24V system (40A) 36V system (25A) 48V system (20A) 60V system (15A) 72V system (13.5A) 84V system (11.5A) |
12V system (160A) 24V system (80A) 36V system (50A) 48V system (40A) 60V system (30A) 72V system (27A) 84V system (23A) |
24V system (120A) 36V system (75A) 48V system (60A) 60V system (45A) 72V system (40A) 84V system (34A) |
| Charge Profile: | 3 Stage - Bulk - Absorption - Float. | ||
| Communication Methord(optional) | CAN, RS485, RS232 | ||
| Input Over power, over voltage protection | YES | ||
| Output over current and shorted circuit protection | YES | ||
| Output Over load, over voltage protection | YES | ||
| Battery reverse polarity protection | YES | ||
| Operating Temperature: | -10°C – 40°C | ||
| Environmental Protection: | IP20 | ||
| Cooling: | Forced air cooling | ||
