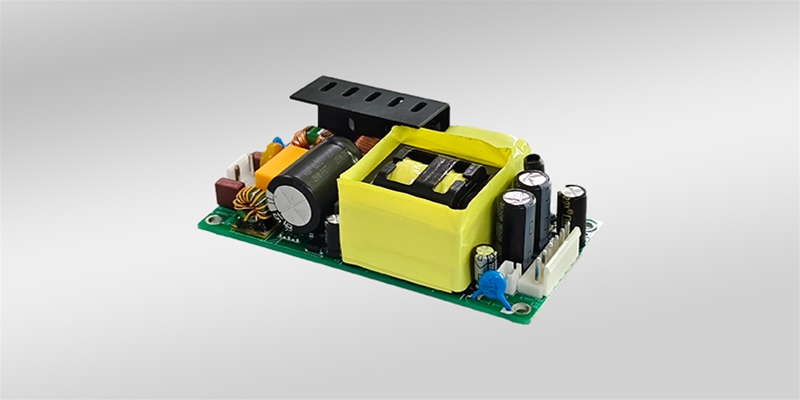

Power Module

Standard-sized modular power supply

Wechat consulting

微信扫码咨询
Consult now +86-18602087818 返回

Details

Power Rate 225W 750W 1000W 2000W
Protuct Type Open Frame Enclosed Power Supply
Model FY-1425 FY-1325 FY-1526 FY-1625
　 　 　 　 　
Output Voltage（V) 12 24 36 48 12 24 36 48 12 24 36 48 24 36 48
Convection Output Current(A) 11.67 5.83 3.89 2.91 20.83 12.5 8.33 6.25 / / / / / / /
Output Power(W) 140 140 140 140 250 300 300 300 / / / / / / /
Forced Air Output Current(A) 18.75 9.4 6.39 4.7 45.83 31.25 20.83 15.63 50 41.66 27.8 20.83 65 55.56 41.67
Output Power(W) 225 225 225 225 550 750 750 750 600 999.84 1000.8 999.84 1560 2000 2000
Efficiency (@220Vac  Full load) 92.5% 94% 94% 94.5% 92.5% 94% 94% 94.5% 91% 92% 92% 92.5% 91% 91% 92%
Ripple & Noise(mVp-p) 120 240 360 400 120 240 360 400 120 240 360 400 240 360 400
Standby power consumption(W) ≤0.5W ≤1W ≤3W ≤3W
Protection Over Voltage √ √ √ √
Over Current √ √ √ √
Over temperature √ √ √ √
Short Circuit √ √ √ √
Size(L*W*H mm) 101.6*52.5*27.5 127*76*38 285*119.5*40 295*127*41
Return
keyword：Open Frame(Miniaturization)
