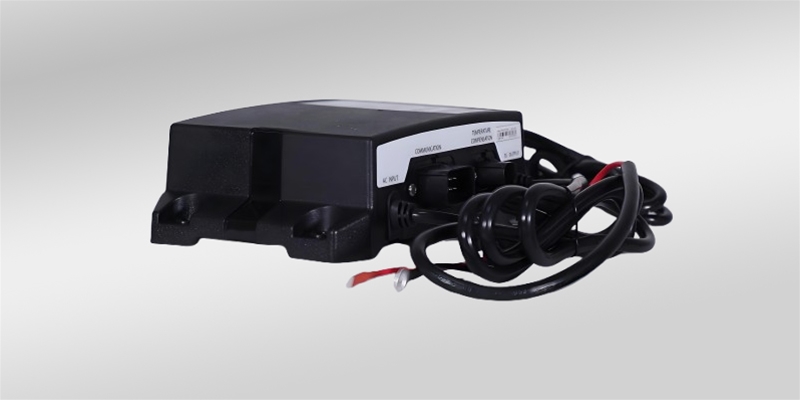

Smart Online Power System
●Smart: Automatic monitoring charging status ●Online Programing: Modified the charging voltage and current due to different battery ●High precision: Tolerance of output Voltage and Current less than 1/1000
Wechat consulting
Details
1. Input Voltage Range: 90~264VAC
2. AC Input Frequency Range: 47~63 Hz
3. Input Amps(Max): 3.7Amps RMS
4. Output Voltage: 12V/24V/48V
5. Output Max charge current(Imax): 10Amps
6. Rechargerable battery types: FLA, GEL, AGM, NiCad
7. Short circuit current: 6.25Amps
8. Charger fuse(external): 15 Amp ATO 32V blade fuse
9. Operating temperature: -10-70℃
10.Storage temperature: -20~85℃
11.MTBF: 500,000 hours
12.Maximum Efficiency : ≥89%
13.CANBUS Communications: 10 pin Molex connector 19428-0007(CAN communications)
