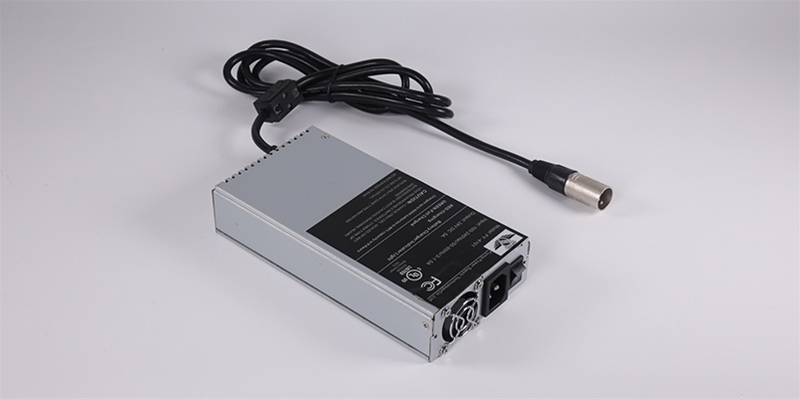

S/N

TEST  ITEMS

UNIT

TEST CONDITIONS/RECORDS

INPUT

01

Input Voltage Range

Vac

90 – 264Vac

02

Nominal Input Voltage

Vac

115 & 230

03

Input  Current (Max.)

Arms

2.0A

At 5A load & 115Vac input Voltage

04

Inrush Current (Typical)

Arms

Less than 30 at 230Vac

With input capacitor fully discharged

05

Switching Frequency

KHz

65 (Typical)

Any line and any load.

OUTPUT

01

Output Voltage (nom.)

V

24

Any line and 5A load

02

Output Current (nom.)

A

8

Any line

03

Float Output Voltage

Vdc

27.5 ± 0.3 (Green LED ON)

200mA to 1A load, Triggering Point 1A

04

Half  Load Voltage

Vdc

29.1 ± 0.5(Red LED ON)

At 4A-1.5A load, load sequencing from high to low, i.e., first test at 5A then 1.5 A

05

Bulk charge mode Voltage

Vdc

18.0 ~ 27 Vdc (Red LED ON)

At 5A load

06

Maximum Output Current

A

<8A

Any Line

07

Maximum output wattage

W

145

At 0A load and any line

08

Ripple (Max.)

mVp-p

240

0~4A load and any line

09

Efficiency (Typ.)

%

80

At nominal load & line of 230Vac

10

Efficiency (Min.)

%

75

At any line and load of 4A

11

Wet battery mode Voltage

V

30~32

At 0A~20mA and any line,Trigger Point 30mA

12

Line Regulation

%

5

At every load division and any line input

13

Load Regulation

%

5

At every load division and any line input
